Zentyal 兩台 DC DRBD+OCFS2 運作－echochio

1. 安裝好 Zentyal 在設定網域前裝 drbd 及 ocfs 請參考

http://echochio.pixnet.net/blog/post/44399143

2. 第一台加入網域或獨立網域

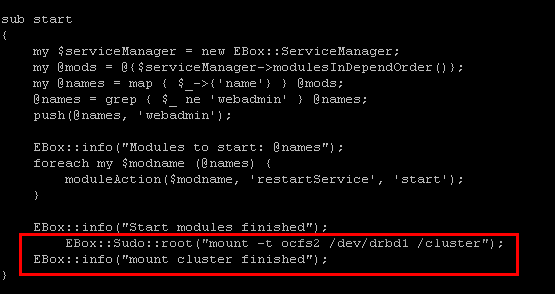

3. 第一台在 /usr/share/perl5/EBox/Util/Init.pm 的內面加 mount /cluster

............

EBox::info("Start modules finished");
EBox::Sudo::root("mount -t ocfs2 /dev/drbd1 /cluster");
EBox::info("mount cluster finished");
..............

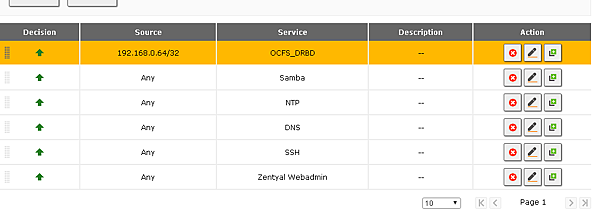

4. 第一台防火牆設定 OCFS_DRBD Service Service 為 7777 & 7789 PORT
將依照對方的 Source IP(第二台的IP) 加入許可通過

5. 第一台重開 OS 後 .... 觀看 DRBD 是否正常 (drbd-overview) ...不正常搞到正常 ....

root@linux-ad1:~# drbd-overview
1:r0/0 Connected Primary/ DUnknown UpToDate/ DUnknown C r----- /cluster ocfs2 50G 2.1G 48G 5%

6. 至第一台建立Smaba 連結...搬移
root@linux-ad1:~# chmod 777 /cluster
root@linux-ad1:~# cd /var/lib/samba/sysvol
root@linux-ad1:~# tar cvf - . |(cd /cluster;tar xf -)
root@linux-ad1:~# rm -rf /var/lib/samba/sysvol
root@linux-ad1:~# ln -s /cluster /var/lib/samba/sysvol

root@linux-ad1:~# ls -l /var/lib/samba/sysvol
lrwxrwxrwx 1 root root 8 Nov 20 22:52 /var/lib/samba/sysvol -> /cluster
root@linux-ad1:~# ls -l /var/lib/samba/sysvol/TW2.AD/
total 0
drwxrwx---+ 5 administrator adm 3896 Nov 19 05:10 DfsrPrivate
drwxrwx---+ 5 administrator 3000010 3896 Nov 20 19:13 Policies
drwxrwx---+ 2 administrator 3000010 3896 Nov 20 19:21 scripts
root@linux-ad1:~#

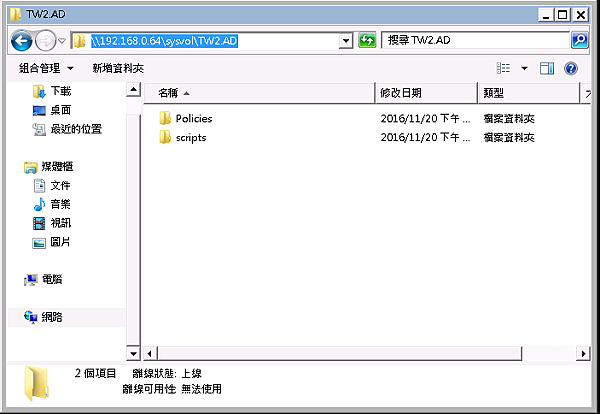

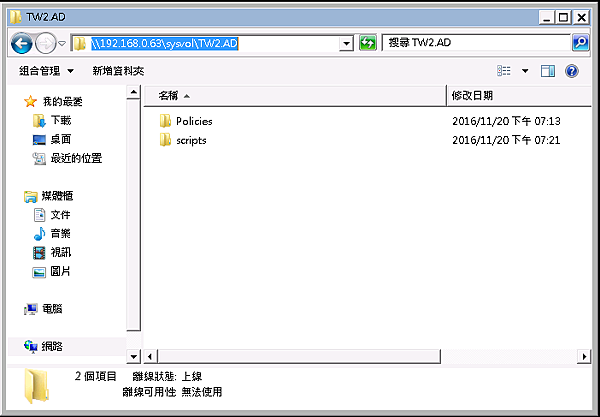

7. 至 windows 查看 sysvol 是否正常

8. 第二台加入第一台網域

9. 第二台在 /usr/share/perl5/EBox/Util/Init.pm 的內面加 mount /cluster

............

EBox::info("Start modules finished");
EBox::Sudo::root("mount -t ocfs2 /dev/drbd1 /cluster");
EBox::info("mount cluster finished");
..............

10. 第二台防火牆設定 OCFS_DRBD Service Service 為 7777 & 7789 PORT
將依照對方的 Source IP(第一台的IP) 加入許可通過

11. 第二台重開 OS 後 .... 觀看 DRBD 是否正常 (drbd-overview) ...不正常搞到正常

root@linux-ad2:~# drbd-overview
1:r0/0 Connected Primary/Primary UpToDate/UpToDate C r----- /cluster ocfs2 50G 2.1G 48G 5%

12. 至第一台建立Smaba 連結...
root@linux-ad2:~# chmod 777 /cluster
root@linux-ad2:~# cd /var/lib/samba
root@linux-ad2:~# rm -rf /var/lib/samba/sysvol
root@linux-ad2:~# ln -s /cluster /var/lib/samba/sysvol

root@linux-ad2:~# ls -l /var/lib/samba/sysvol
lrwxrwxrwx 1 root root 8 Nov 20 23:18 /var/lib/samba/sysvol -> /cluster
root@linux-ad2:~# ls -l /var/lib/samba/sysvol/TW2.AD/
total 0
drwxrwx---+ 5 administrator adm 3896 Nov 19 05:10 DfsrPrivate
drwxrwx---+ 5 administrator 3000010 3896 Nov 20 19:13 Policies
drwxrwx---+ 2 administrator 3000010 3896 Nov 20 19:21 scripts
root@linux-ad2:~#

13. 至 windows 查看 sysvol 是否正常

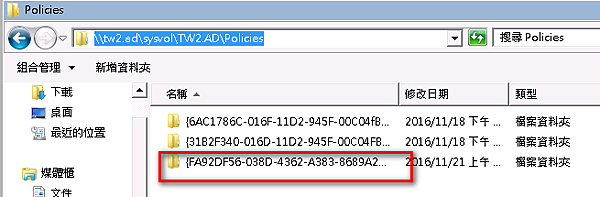

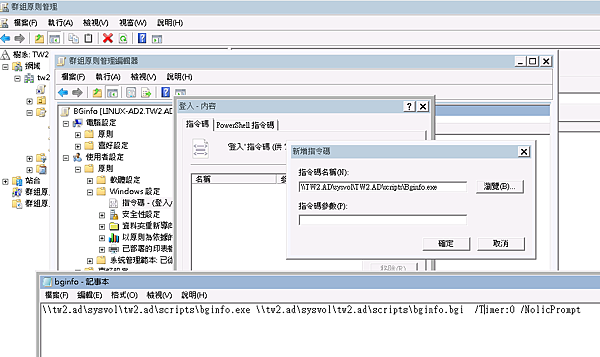

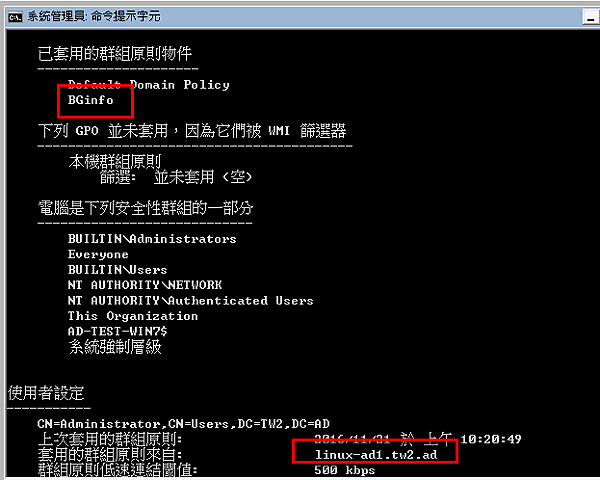

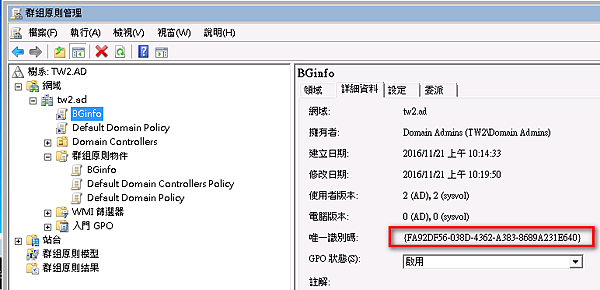

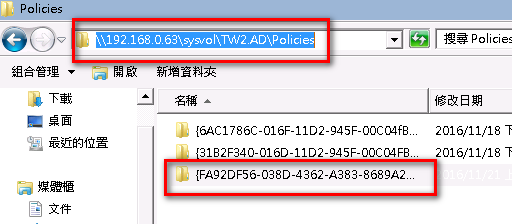

14. 至 windows 複寫測試

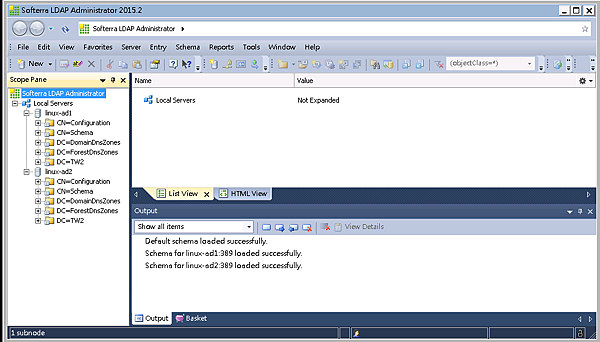

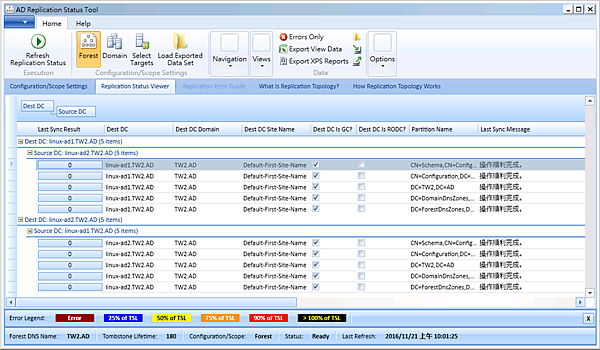

15. LDAP 檢查

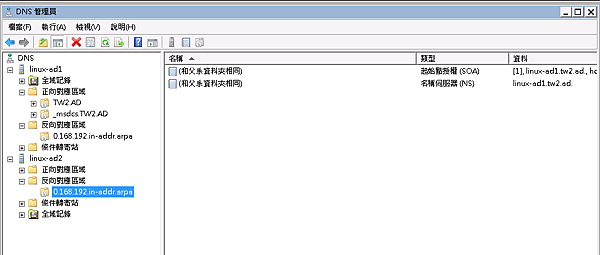

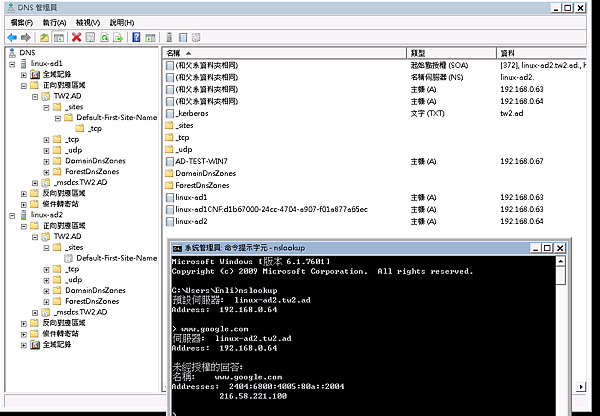

16. DNS 檢查

17. 帳號檢查新增user ... chio 看看有沒有複寫到兩台 ....看 zentyal.log 知道是在第二台新增 ....看 samba.log ...知道有寫到第一台

root@linux-ad2:~# tail -f /var/log/zentyal/zentyal.log | grep chio
2016/11/21 10:05:55 INFO> SetUidGidNumbers.pm:106 EBox::Samba::SetUidGidNumbers::checkUsers - Set user 'CN=chio,CN=Users,DC=TW2,DC=AD' uidNumber '2504'
2016/11/21 10:05:55 INFO> SetUidGidNumbers.pm:115 EBox::Samba::SetUidGidNumbers::checkUsers - Set user 'CN=chio,CN=Users,DC=TW2,DC=AD' gidNumber '2513'

root@linux-ad1:~# cat /var/log/samba/samba.log |grep chio
TW2\Administrator (S-1-5-21-2402317723-1685012225-74364176-500) is changing password of chio@TW2.AD
Discarding older DRS attribute update to sn on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to givenName on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to displayName on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to isDeleted on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to name on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to codePage on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to countryCode on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to unicodePwd on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to ntPwdHistory on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to pwdLastSet on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to primaryGroupID on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to supplementalCredentials on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to accountExpires on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to sAMAccountType on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to userPrincipalName on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to lastKnownParent on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to objectCategory on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to lastLogonTimestamp on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to isRecycled on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to uidNumber on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to gidNumber on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to cn on CN=chiochou\0ADEL:04cd8f9d-e8b6-4048-93e9-6dd0bc1f397c,CN=Deleted Objects,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to objectClass on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to sn on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to whenCreated on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to displayName on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to nTSecurityDescriptor on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to name on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to userAccountControl on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to codePage on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to countryCode on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to unicodePwd on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to ntPwdHistory on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to pwdLastSet on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to primaryGroupID on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to supplementalCredentials on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to objectSid on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to accountExpires on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to sAMAccountName on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to sAMAccountType on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to userPrincipalName on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to objectCategory on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
Discarding older DRS attribute update to cn on CN=chio,CN=Users,DC=TW2,DC=AD from 833b7e43-2ed2-4ed3-a258-19dc75dccebb
